BMC-100-LTR
  • BMC-100-LTR

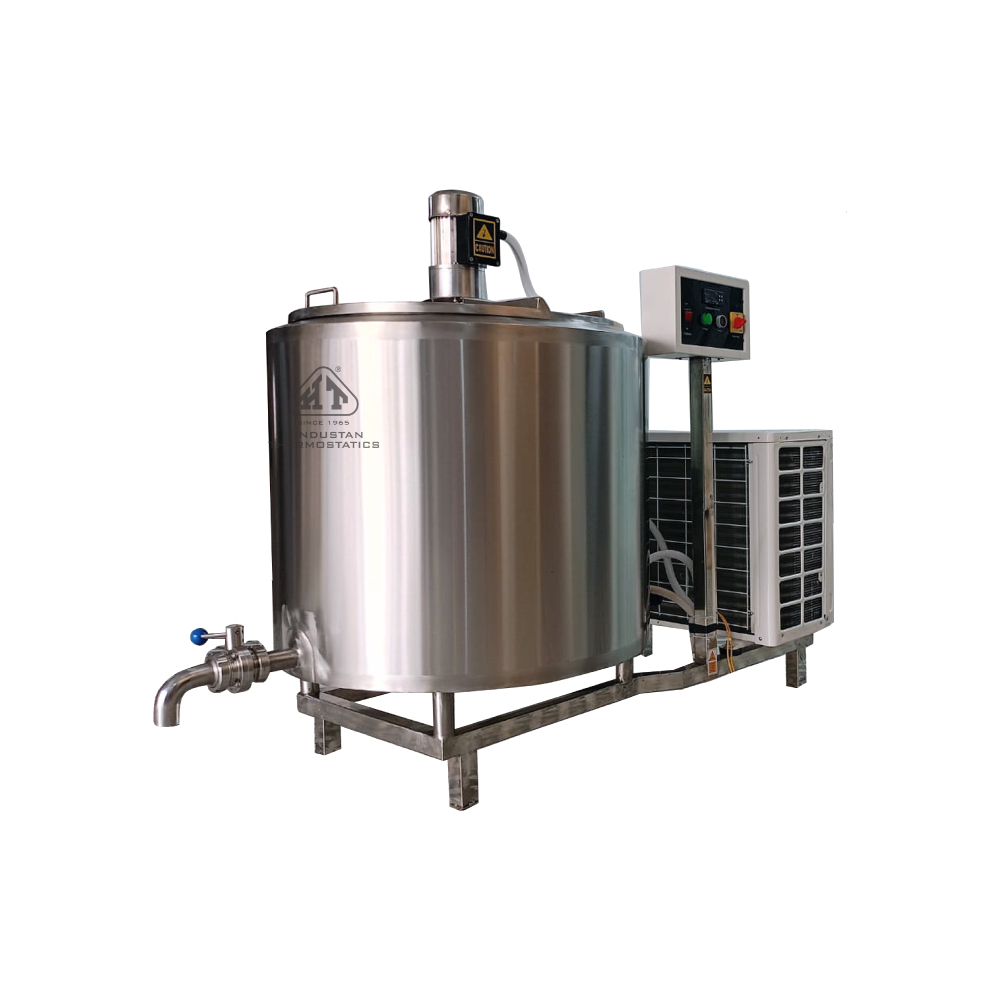

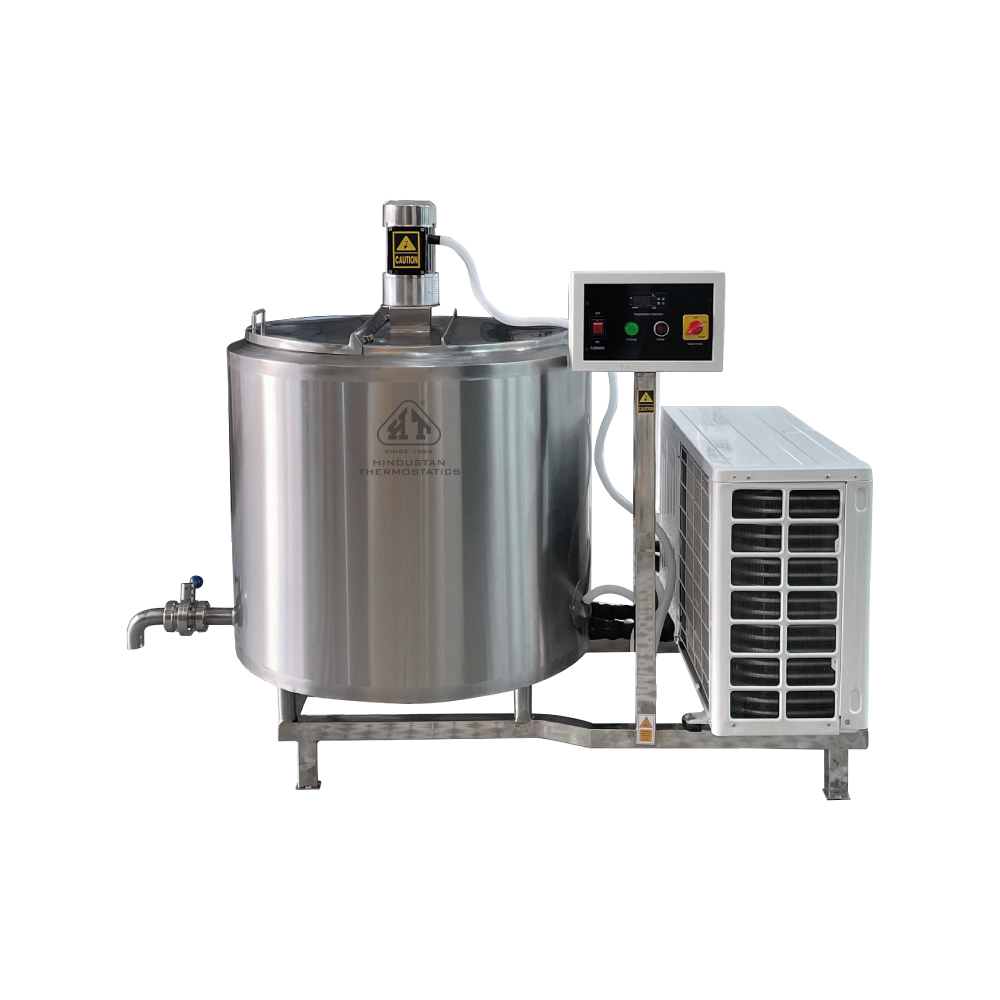

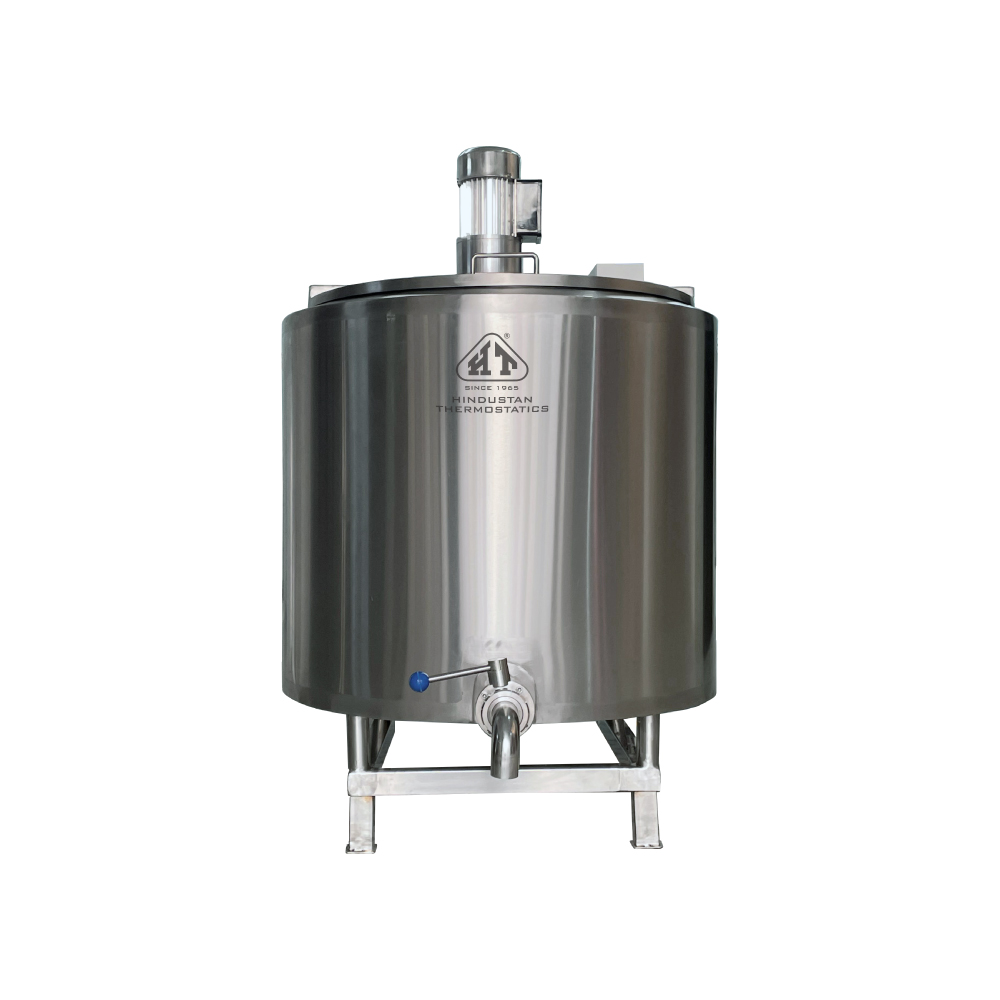

Bulk Milk Cooler Bmc 200 Ltr

  • Capacity – 200 Litres
  • Technology – Direct expansion cooling tank (Open type round shape)
  • Insulation – Factory injected polyurethane foam of 50 mm.
  • Condensing unit – Hermetically sealed type with R22/R404 refrigerant gas.

FUNCTION: The Bulk Cooling Unit will be used to cool raw milk from the ambient temperature of 35° to 4° C within the specified time as laid down by us ISO 5708 Class 2A-II Standards. Two Milking design system has been configured such that volume of each milking is as under :

  • Milking in the Morning – 50%
  • Milking in the Evening – 50%

Please note minimum milk should be 50 Ltrs for proper functioning of BMC.

Maximum Cooling Time :

  • First Milking : 3.0 hr. from 35° to 4° Celsius
  • Second Milking : 1.5 hr. from 10° to 4° Celsius
Enquire Now
Category:

Features

A) Milk Cooling Tank

Open design with spring assisted hinged lid to be provided for easy access for cleaning and visual inspection. The tank will be a cylindrical shape with a condensing unit underneath with a double stainless steel shell of AISI 304 in special ground finish 150 grit. The bottom of the tank is designed with a dimple evaporator. It is to be made from AISI 304 Stainless Steel using laser welding technology. The thickness of the inner shell be 2 mm and the outer shell shall be 1.5 mm.

Insulation The tank is insulated with CFC free injected polyurethane foam min 40 kg/m3 without any imperfection with a thickness of 50 mm as per ISO 5708 Class 2A-II.

Accessories

Agitator – Extra low-speed agitator with stainless steel shaft and specially designed blade are fabricated for easy rotation of milk even cooling motor will be provided for optimum sealing between agitator and tank.

Outlet – 1 unit  tank outlet fitted with 1 unit butterfly valve comes in standard 304 alloys and can accommodate tri-clamp connections have a plain ferrule, a clamp and a gasket for secure connections.

B) Refrigeration System

Mounted on skid comprising of the following:
Hermetically sealed compressor complete with drive motor

Condenser – Air Cooled, screen-protected compact condenser unit comprising of finned condenser coils in several rows. One set of evaporating coils was welded to the inside tank and pressed into a channeling plate of adequate size.

Refrigerant & Oil – The unit is supplied complete with the first charge of the environment-friendly refrigerant and lubrication oil.

One Set – Refrigeration system controls field mounted comprising of a solenoid valve, L.P / H.P. cutout and sensor for digital temperature indicators.

C) Control Panel

Refrigeration control panel with milk tank control panel shall be fabricated of 1.2 mm thick mild steel sheet in dust and vermin proof design will have temperature display & control, switch gears etc. The control panel is given in mounted execution and is pre-wired to terminal connections.

Specifications

Capacity 200 Litre
Gross Capacity 220 Litre
MOC Stainless Steel AISI304
Shape & Orientation Vertical, Cylindrical
The thickness of inner and outer shells (mm) 2mm / 1.5 mm
Cleaning-in-place (CIP) Manual
Thickness of insulation 50-60 mm Puff insulation
Make of Compressor Emerson Copeland
Model of Compressor KCJ 511
Compressor 1.0 Ton / 1.0 KW
Condenser Air-cooled
Power Supply Single – phase 220 Volts
Frequency 50 Hz
Agitator Power 60 watts
